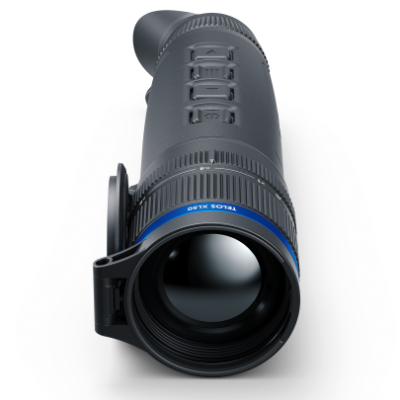

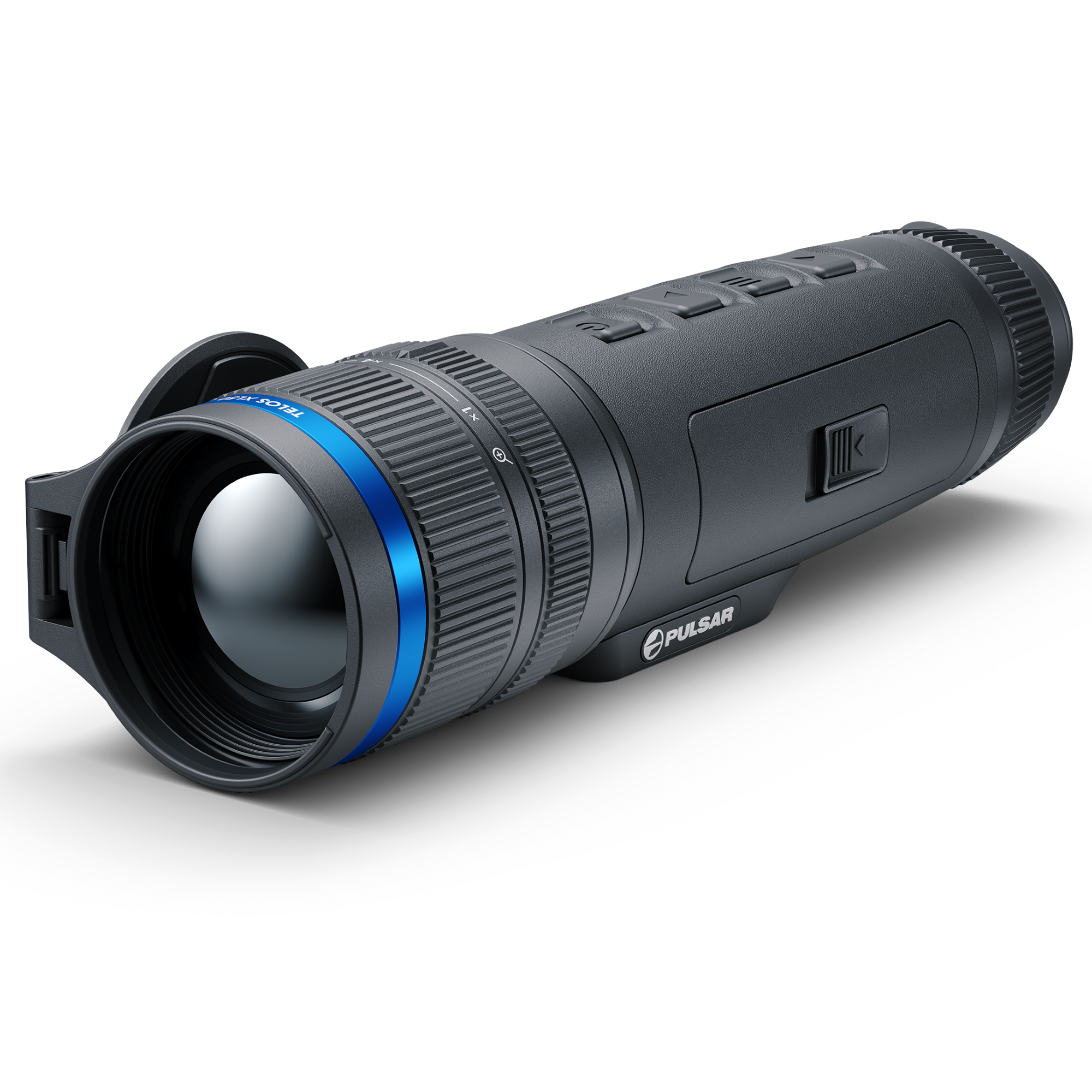

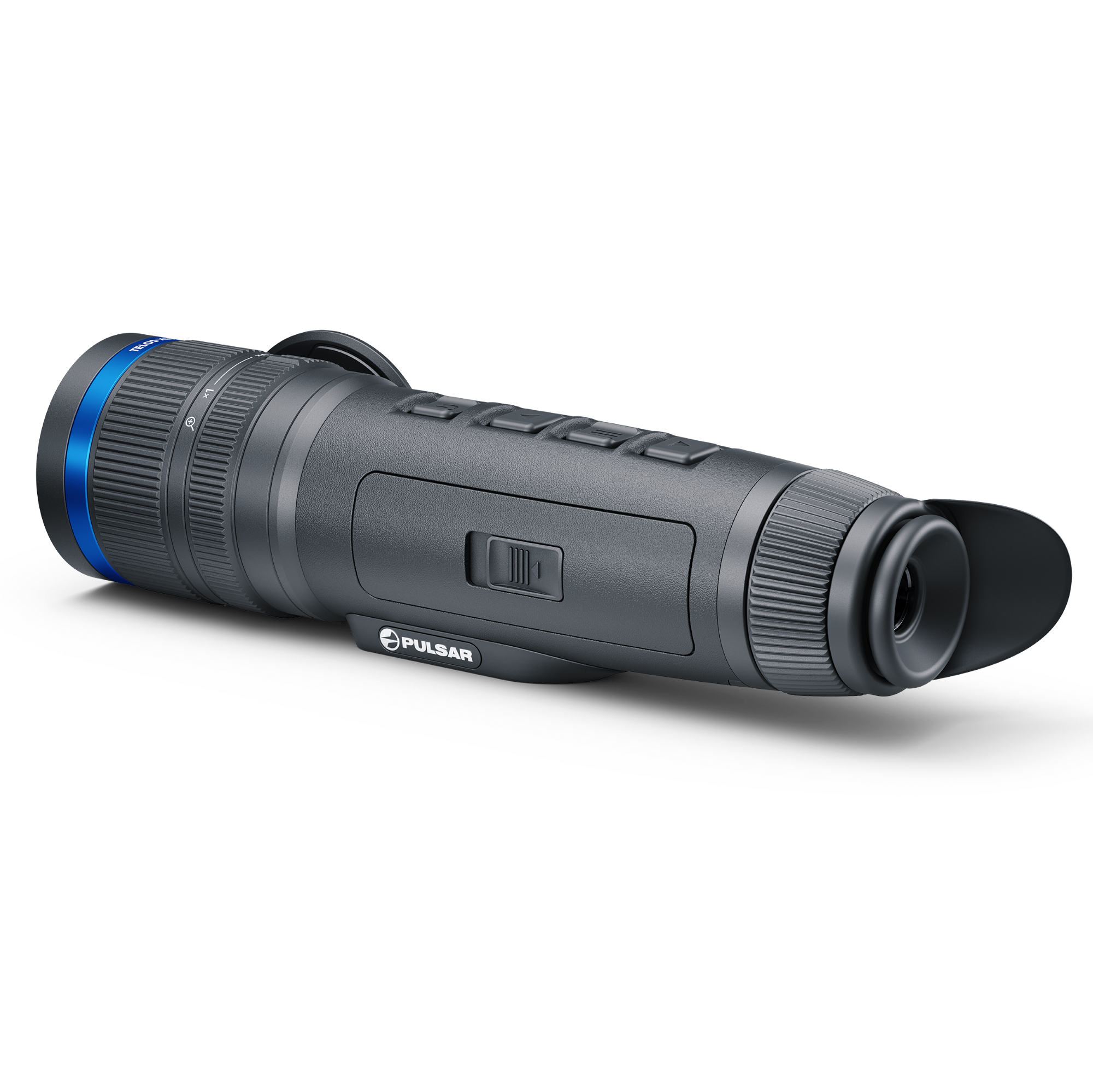

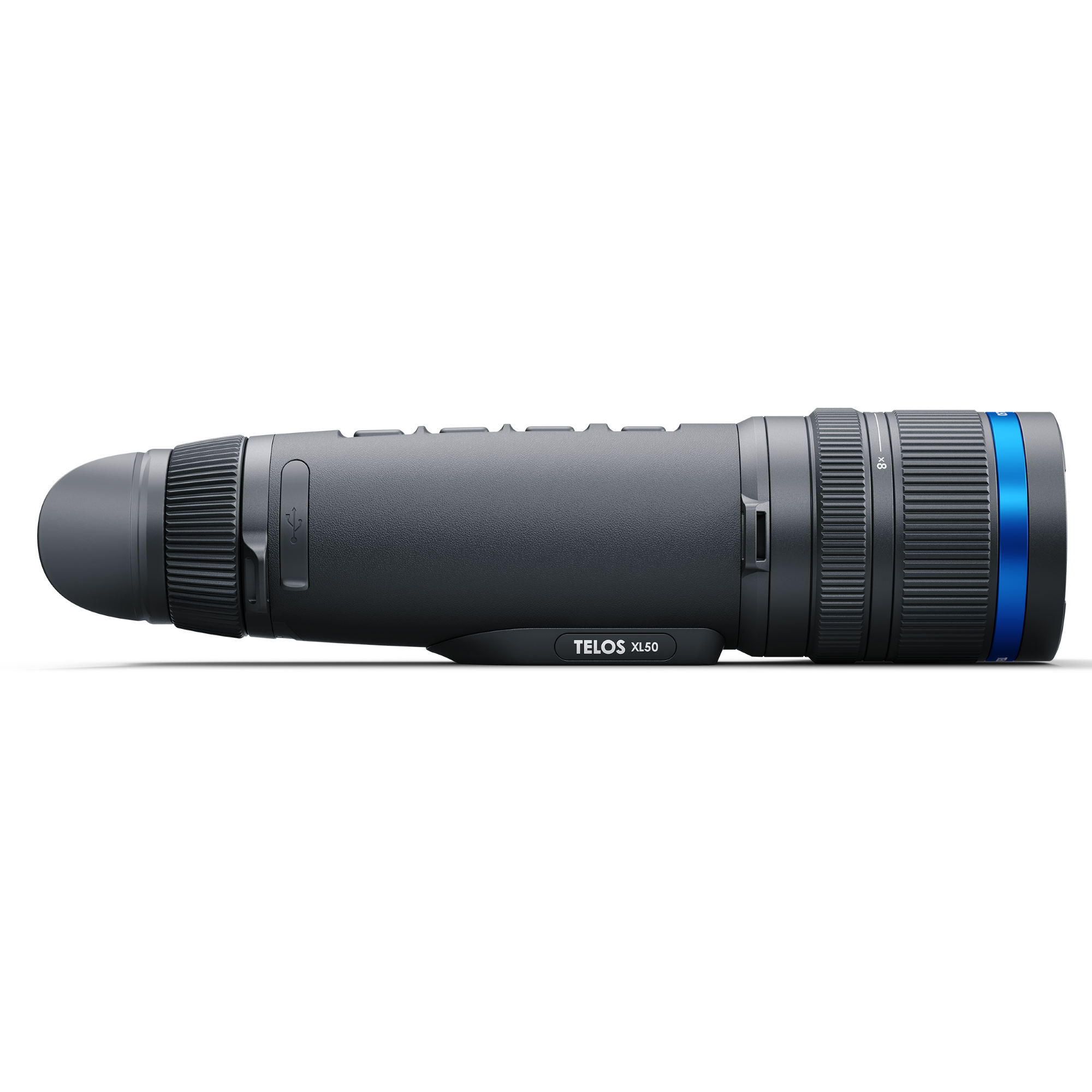

PULSAR TELOS XL50 THERMAL MONOCULAR 1024×768, <40mK, 12um, 2300m

SKU: 77516 Category:

Experience the most detailed image with the Pulsar Telos XL50 and its HD-resolution thermal imaging sensor.

$6,599.00 inc GST

Customer's Also Viewed

MAIN SPECIFICATIONS
Sensor 1024×768 @ 12 µm
Objective lens F50 / 1.0
Magnification, x 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees 14 x 10.5
FOV (HxV), m@100m 24.6 х 18.5
Detection range 2300
SENSOR
Type uncooled
Resolution, pixels 1024×768
Pixel pitch, µm 12

Sensor NETD, mK < 40

Frame rate, Hz 50
OPTICS
Objective lens F50 / 1.0
Magnification, x 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees 14 x 10.5
FOV (HxV), m@100m 24.6 х 18.5
Eye relief, mm 14
DISPLAY
Type AMOLED HD
Resolution, pixels 1024×768
RANGE PERFORMANCE
Detection range, m 2300
VIDEO RECORDER
Video / photo resultion, pixel 1024×768
Video / photo format .mp4 / .jpg
Build-in memory, GB 64
WI-FI
Wireless protocol

Wi-Fi

Wireless standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, Ghz 2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
Degree of protectionIP code (IEC60529) IPX7 (waterproof)
Operating temperature range, °С -25 – +40
CONNECTIONS AND COMPATIBILITIES
Mount type 1/4″
Supported application Stream Vision 2
POWER SUPPLY
Output voltage, V 3.0 – 4.2
Battery type LPS 7i Li-Ion Battery Pack
Capacity, mAh 6400
Operating time on battery pack, hat t=22°С 7
External power supply, V 5V; 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
Body material rubber armored reinforced plastic
Dimensions, mm 243x72x62
Weight, kg 0,68
SKU 77516
